PT 4000L Custom Roto Mold Plastic Vertical Storage Rainwater Harvesting Tanks
Desciption of the water tank
PT4000liter Rainwater Harvesting Tanks made from the highest quality rotational molded polyethylene with
built in UV stablization .This Vertical tanks are freestanding for indoor or outdoor stationary applications .
The rotational molding is a thermoplastic fabrication technique that manufactures hollow products by using
heat and a revolving metal mold. Rotomolded products are seamless, uniform in wall thickness and of
single construction, which eliminates costly fabrication processes and the need for replacement parts.
Application
Chemical Storage , Mixing , Transport
above ground cisterns
residential safe drinking water
rainwater harvesting
long term water storage
emergency potable water storage
fire protection water tanks
farm irrigation
Sepcification
| Model | Capacity | Weight | Dimensions | Lid | Fitting | Specific Gravity |
| PT-4000 l | 4000L | 100 | D1700*H2100 mm | 650 | 2″ -4" | 1.0 -1.35 |
Notice: if you storage liquids Specific Gravity , please let me know , the tank need do more heavy and more thicker , also need install steel bar to Protect the tank then lasting the tank using life !!!
All the size sheet for the water tank
| Mould | Capacity | Specification |
| PT200 | 200L | Diameter: 560mm Caliber :370 mm Heigh : 900 mm Plastic thickness :3mm |
| PT300 | 300L | Diameter: 720mm Caliber :450 mm Heigh : 920 mm Plastic thickness :3.5mm |
| PT500 | 500l | Diameter: 850mm Caliber :450 mm Heigh : 1100 mm Plastic thickness :4mm |
| PT800 | 800L | Diameter: 1000mm Caliber :450 mm Heigh : 1270 mm Plastic thickness :4.5mm |
| PT1000 | 1000L | Diameter: 1070mm Caliber :450 mm Heigh : 1400 mm Plastic thickness :5mm |
| PT1500 | 1500L | Diameter: 1210mm Caliber :450 mm Heigh : 1530 mm Plastic thickness :5.5mm |
| PT2000 | 2000L | Diameter: 1330mm Caliber :450 mm Heigh :1700 mm Plastic thickness :5mm |
| PT3000 | 3000L | Diameter: 1500mm Caliber :450 mm Heigh : 1880 mm Plastic thickness :6.5mm |
| PT4000 | 4000L | D1700*H2100 mm |
| PT5000 | 5000L | D1820*H2230 mm |
| PT6000 | 6000L | D12030*H2420 mm |
| PT8000 | 8000L | D12030*H3100 mm |
| PT10000 | 10000L | Diameter: 2250mm Caliber :650m Heigh : 2750m Plastic thickness :12.5 |
| PT15000 | 15000L | D2680*H3030 mm |
| PT20000 | 20000L | D2700*H3950 mm |
| PT30000 | 30000L | D3100*H4300 mm |
| PT4000 | 40000L | D3400*H5000mm |
| PT50000 | 50000L | D3400*H6500 mm |

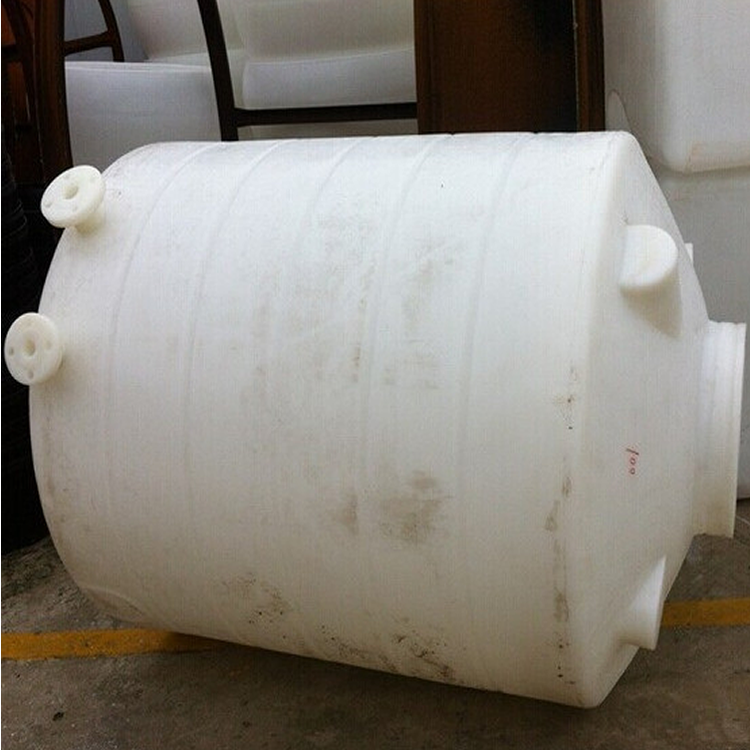

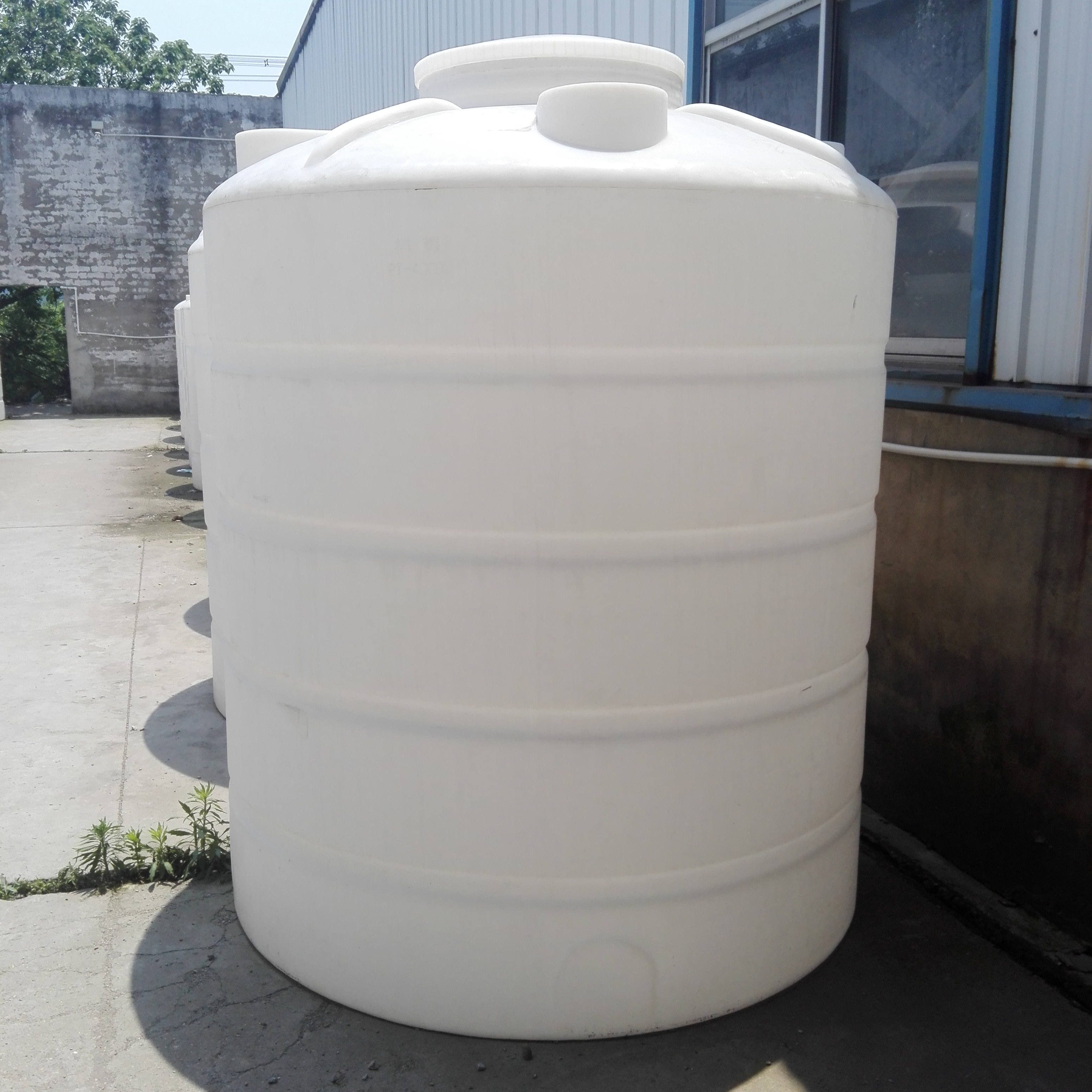

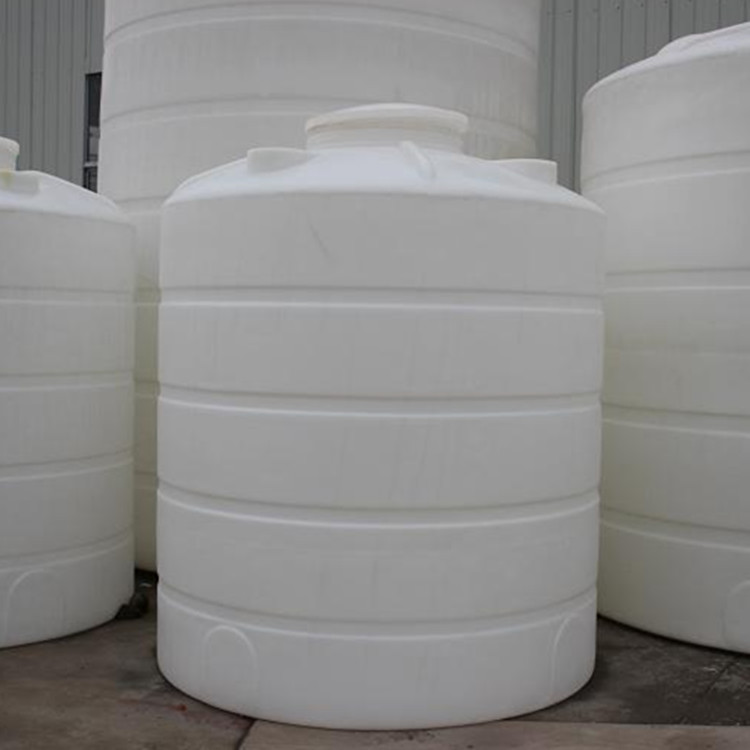

4000L Poly tank Photo
Water tank outlet can be avaiable , normally we can install the fitting and welded flange at the bottom
4000L water tank , we offen install DN50 connection or welded DN50 Flange if you did not any idear
about it , certainly , we will do as your requested in the end . we will offer the best suggestions .
the tank ladder and Protected Steel bar avaiable ( like Second picture)
Top Screw Cover ,Can be remove after screw it
Tank body rid , protect the tank ,Prevent bulk after install full liquids , especilly when the bottom have outlet ,
