Customized PE Bigger cap 650mm New Roto Mold IBC Tanks Container 1000 L
Description of the 1000L IBC tank
IBC (TOTE) containers -plastic palette grid made of aluminum or steel galvanized products made from
strong durable roto moulded (LLPE) polyethylene. UN approved.
500L IBC tank , Made by Rotomolding technique , which is difference the Blowing molding tank , it have
thicker inner plastic tank , which will be more durable and more strong .
Normally we used and sell it to the chemical industrial , as it will be more savety . it can be Stack about 4
Stacks .
Besides ,The IBC bulk container. Is a modern warehousing, transportation of liquid products, the necessary tools
Feature

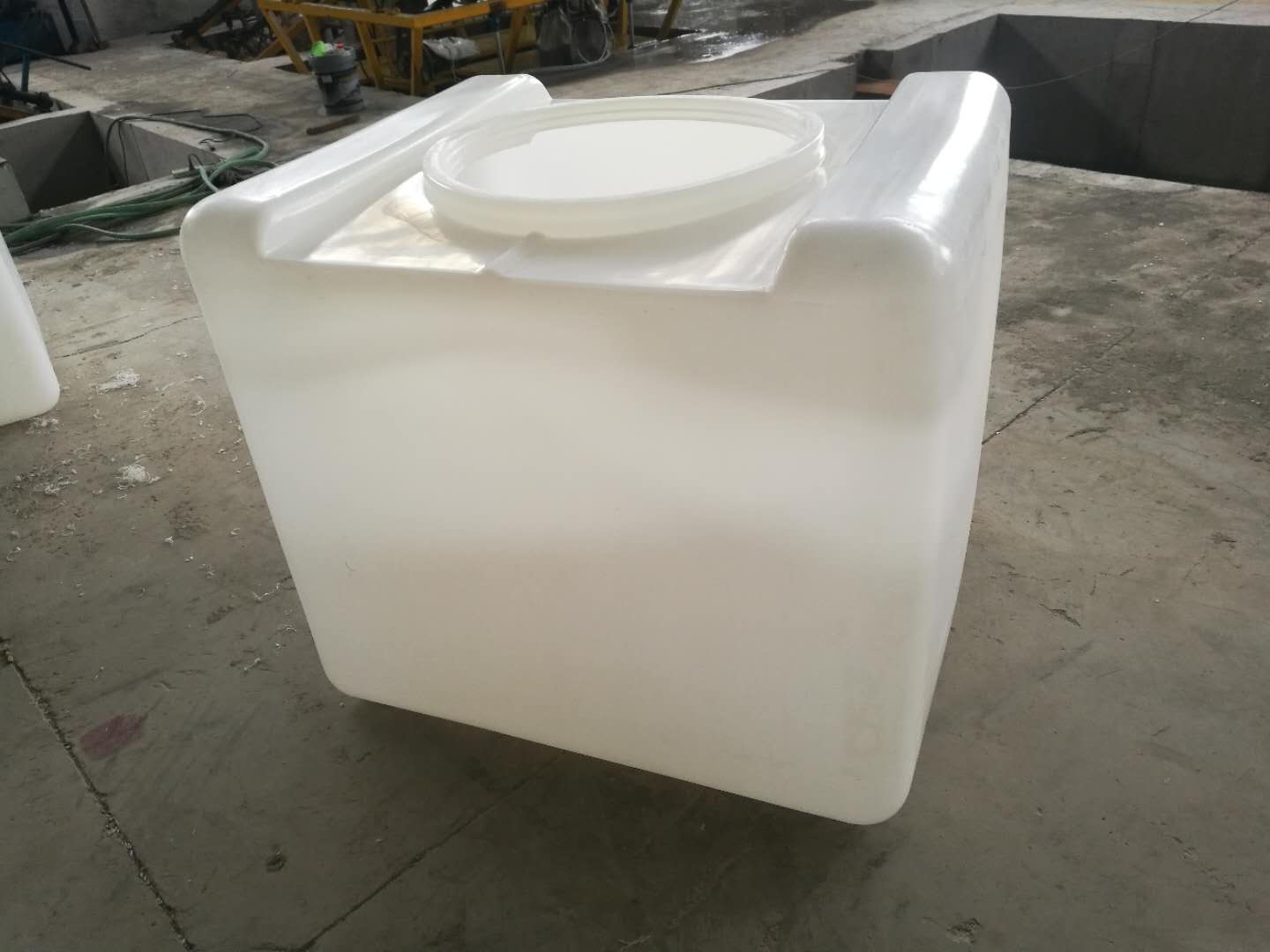

Made of LLDPE, the inner bottle of the IBC is of Lower density, easy to clean and innocuous.
More durable and Safety when transport
Made of first-class hot-dip galvanized steel pipes, the frame of the container is firm, durable and corrosion-
resisting.
Made of engineering plastics, the angle bead and cover plate can well protect the inner barrel and the
valve.
Made of quality galvanized steel plates, the four-way-inlet pallet well protects the inner, and is of best
stability, easy to load, unload and stack.
Equipped with exhaust devices, the container cap ensures liquid safety during transportation.
Fixed by bolts into the container top, so the inner bottle can be easily replaced.
Perfectly suited for high bay warehousing (specially reinforced bottom plate prevents deflection)
Reinforced, warp resistant tubular steel grid jacket
Additional corner guards to protect the inner container
Specification
|
The Technical Date of 1000L HDPE IBC tank
|
|
Item
|
Specification
|
Tolerence
|
|
Rated Volume(L)
|
1000L
| None |
|
Brimful Volume(L)
|
<1000L
| None |
|
Overall Dimension(mm)
|
1200*1000*1150 mm | ±2.5% |
|
Top cap Mouth diameter
|
133 mm , 330 mm , 450mm ,550 mm 650 mm
| ±2 % |
|
Cap type
|
pressure vent and rain cap
| |
|
Material of the Inner tank
|
otomoulded lower Polyethylene
| |
|
Weight for Inner Tank(kg)
|
28kg -40 kg
| ±0.5% |
| Thickness | 5-8 mm for the roto tank , 2 mm for the Blowing tank | |
|
Weight for IBC Tank(kg)
|
63kg -78kg
| ± 2% |
|
Valve outside diameter(mm)
|
50 mm
| ± 1% |
|
Wall Thickness(min)
|
≥3.5mm
| |
|
Outlet Valve(discharge valve)
|
DN50 ball valve& butterfly valve
| |
|
Height for Pallet(mm)
|
120 mm
| |
|
Height for forklift holes(mm)
|
90 mm
| |
|
Length for forklift holes(mm)
|
795 mm
| |
|
Material of the cage
|
Aluminum or steel galvanized
| |

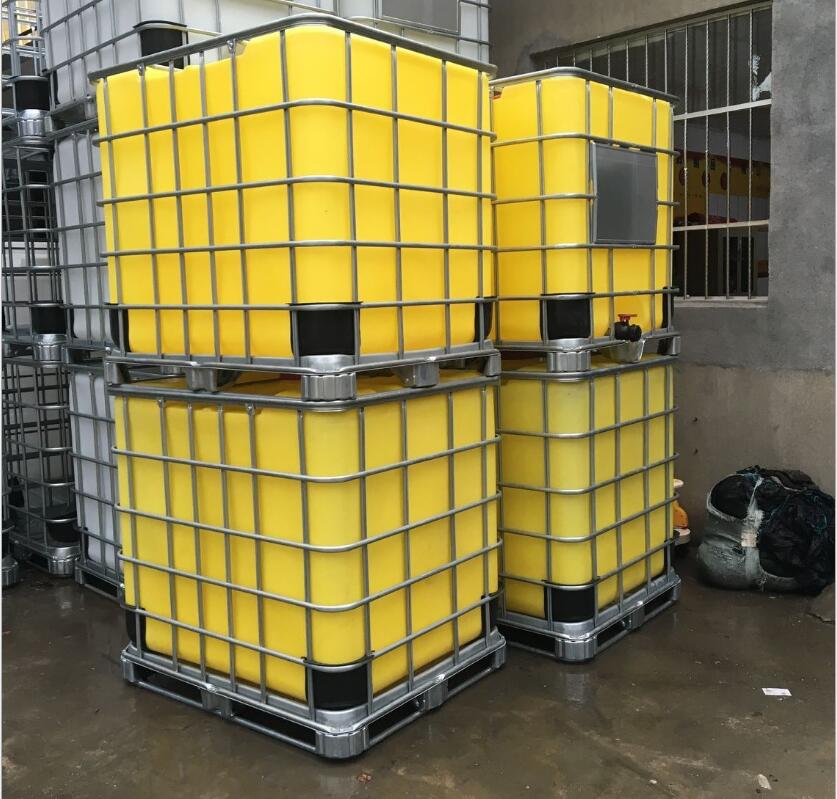

Picture -1000L IBC tank

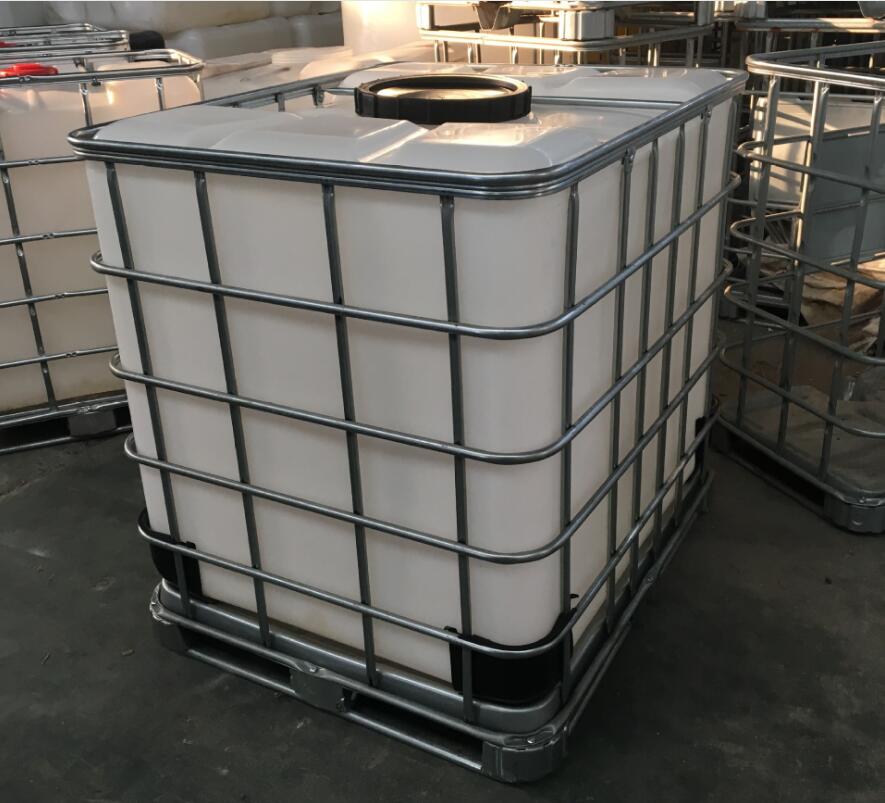

---- this tank cap 330 mm diameter
------

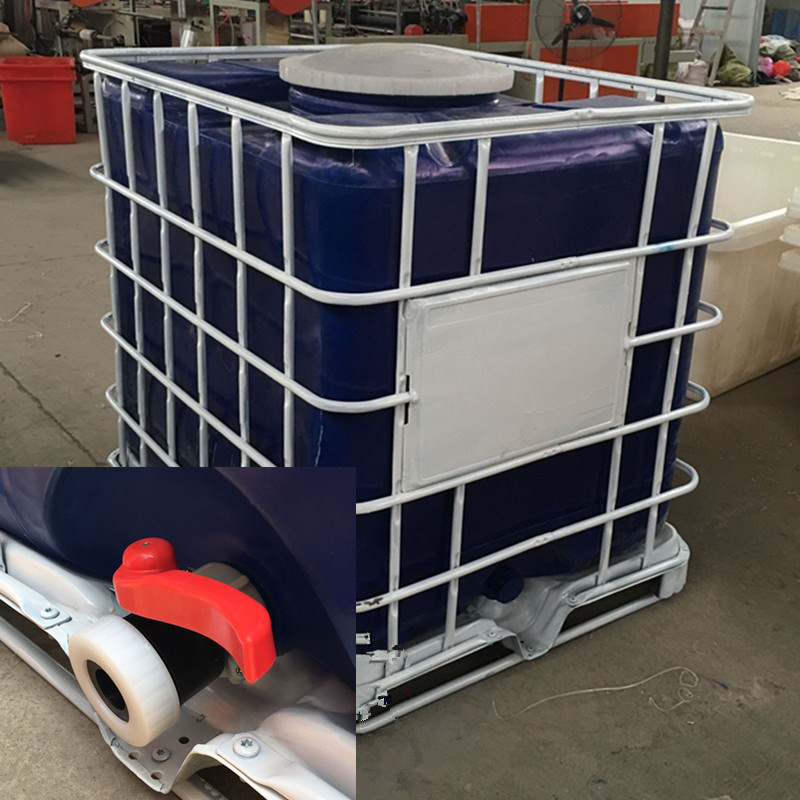

---- this Blue tank cap is 650 mm
----Valve
