CMC 1000L Round Rotomolding Products , Rinse Water Storage Tanks With Steel Stand

Brand Name : Treering

Model Number : Nl-CMC1000

Certification : ISO 9001

Place of Origin : Changzhou Jiangsu China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 30 pcs per weeks

Delivery Time : 3-20 days

Packaging Details : Plastic warp / Carton /Pallet

Accessories : Flange ,fittings,valve, pipes

Volum : 1000L

Material : LLDPE, UV resistant , food grade

Function : storing and saving water, rain water, and recycling household water.

Advantage : Unique rib design with various sizes, dimensions and colours

Technique : Polyethylene

Contact Now

CMC 1000L Rotomolding Products Round PE Cone Bottom Specialty Rinse Tank With Steel Standing







Desciption





1000L Cone Bottom tank made from the highest quality rotational molded polyethylene with

built in UV stablization .  Rotomolded products are seamless, uniform in wall thickness and of

single construction, which eliminates costly fabrication processes and the need for replacement parts.


The design of our cone bottom tanks allows you to quickly and completely empty the contents of the tank.



These tanks come with a steel stand which will support the tank above the ground. The stand allows for an



easy and convenient access to the cone bottom. The tank is Semi- translucent which allows you to monitor



the Liquids level inside the tank.

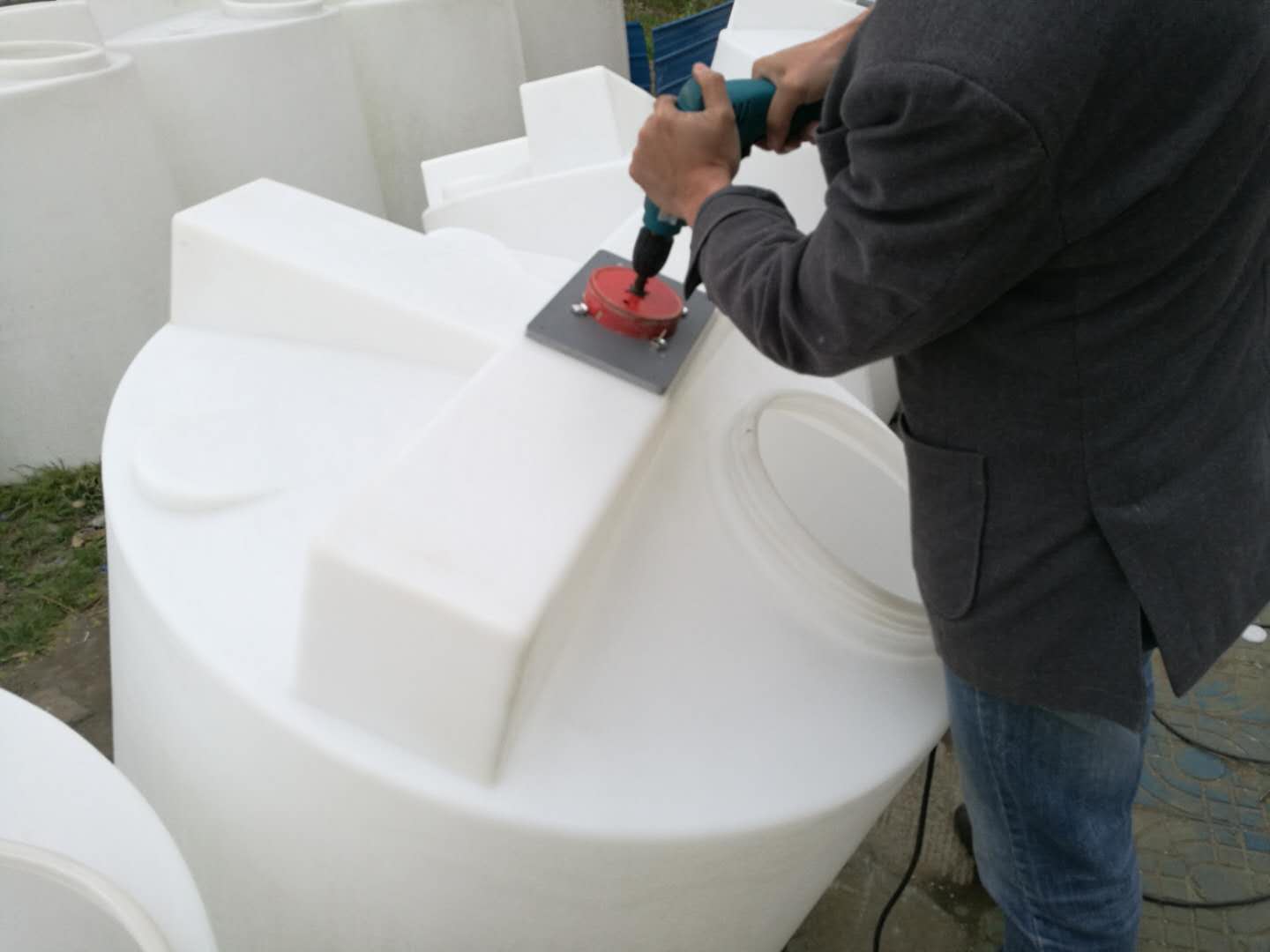

cone bottom tanks can dilled any size inlet at the top which allows for convenient loading and mixing.


Besides , The conical bottom tanks can be used for a variety of purposes. Some examples would be

biodiesel processing, water treatment, oil settling and many other applications which require a chemical

resistant material and a cone shaped bottom for easy and full draining. Conical bottoms are ideal for even

draining. These tanks are essential when settling materials suspended in a fluid, as they will sink to the very

bottom and become fully drainable unlike in flat bottom tanks.

Please Notice , Poly roto tank are no Pressure tank  , so if have any pressure into the tank , should be drill

air vent  at the top





Suitable for growing fish, Chemical, Fertigation

UV stablized for Australian conditions

Food grade

Recyclable

Conical bottoms facilitate liquid drain out

Threaded in outlets for complete drainage

Tanks require stands to support conical bottoms

Tank walls are translucent for level viewing and  equipped with gallon indicators





Usages



Fresh Water



Beer Fermentation Tank



Wine Fermentation



BioDiesel Tanks











Sepcification







Model





CMC1000





SIze





Diameter  800  *height  1380





THickness





6mm





Lid Size




133 mm inner diameter





Outlet





full drain outlet DN15 DN20 DN25





Specific Gravity




1.0  - 1.5





 Level Markers






no ,if you need , we can revised mold





UV Inhibitors





Yes





Colors




Natural White For food grade ,  Black, Others By Request





Metal Stand




Yes , but Stand Sold Separately





Uses:




conical brewer beer/wine/tea, biodiesel tank, fermentation, chemical applications




Additional Fittings:




Available By Request  ( Pipe , Threads







Polypropylene Cone bottom tanks are available by request







Model





Capacity (L)





Diameter (mm)





Height (mm)





Caliber (mm)



CMC100L 100L 450 780 150
CMC200L 200L 550 1020 150
CMC300L 300L 700 1100 150
CMC500L 500L 800 1380 250
CMC1000L 1000L 1040 1500 350
CMC1500L 1500L 1200 1590 350
CMC2000L 2000L 1300 1950 350
CMC3000L 3000L 1460 2060 300
CMC5000L 5000L 1760 2490 490








CMC 1000L Round Rotomolding Products , Rinse Water Storage Tanks With Steel Stand




CMC 1000L Round Rotomolding Products , Rinse Water Storage Tanks With Steel Stand





Please Noticed :



1. All the rotomoulding PE Plastic

Tanks are not designed to be pressurized. Tanks are designed for atmospheric use only;



2. Rotomolded tank , accept OEM , just offer me you idear, we will offer the drawing , Waiting your inquiry Any time
