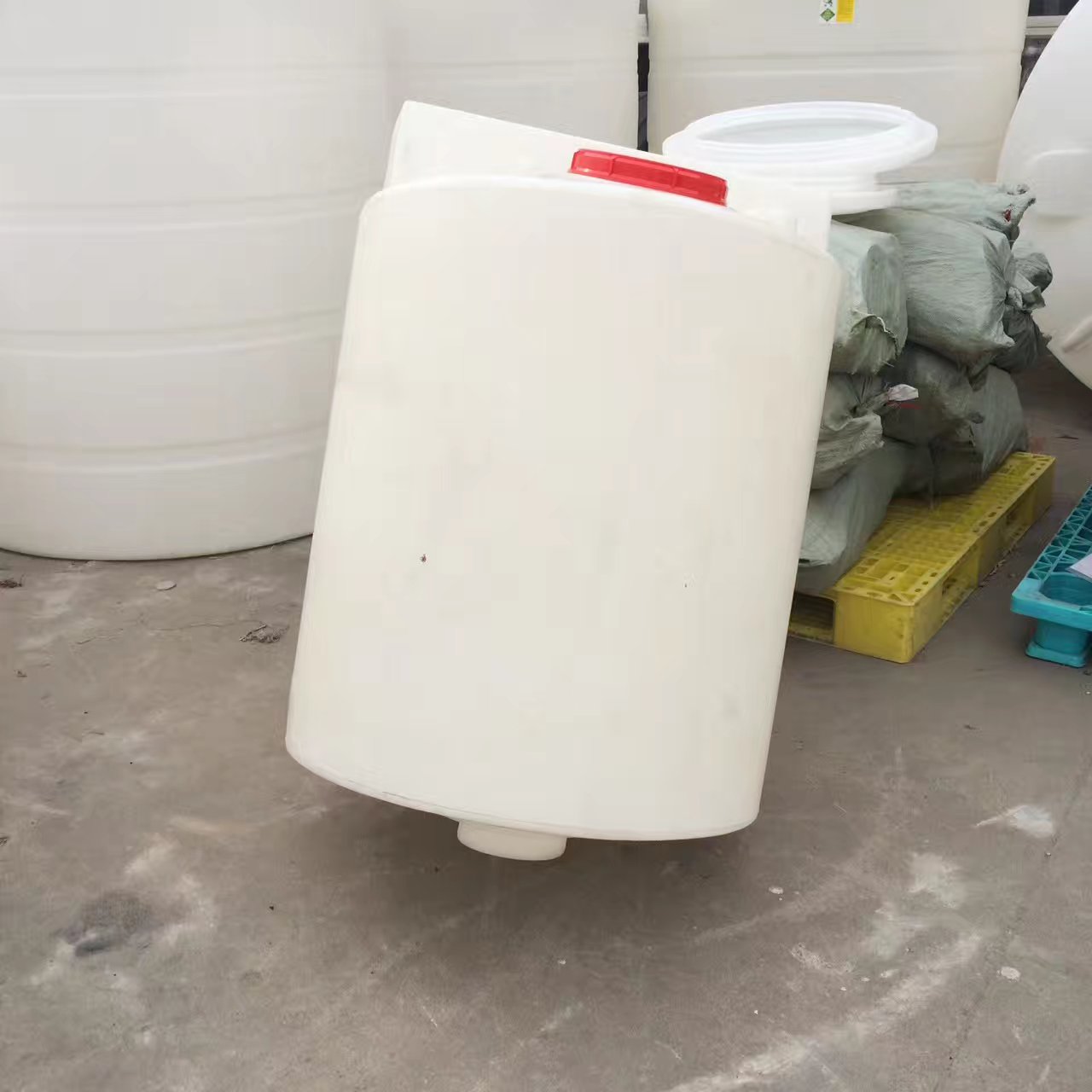

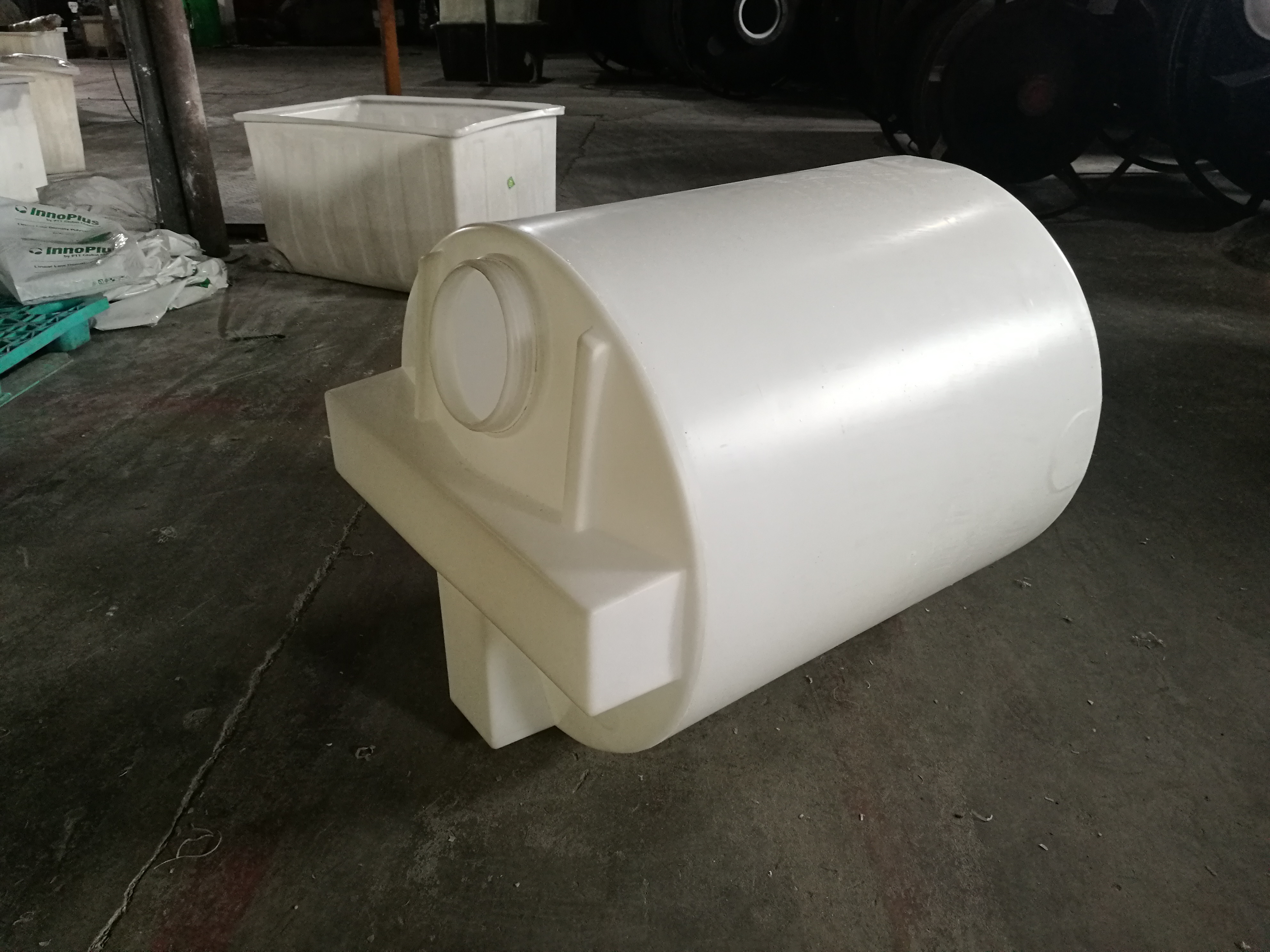

CMC 500L Rotomolding Products Poly Cone Bottom Inductor Dosing Mixing Tanks
Desciption
Cone Bottom tank made from the highest quality rotational molded polyethylene with
built in UV stablization . Rotomolded products are seamless, uniform in wall thickness and of
single construction, which eliminates costly fabrication processes and the need for replacement parts.
The design of our cone bottom tanks allows you to quickly and completely empty the contents of the tank.
These tanks come with a steel stand which will support the tank above the ground. The stand allows for an
easy and convenient access to the cone bottom. The tank is Semi- translucent which allows you to monitor
the Liquids level inside the tank.
cone bottom tanks can dilled any size inlet at the top which allows for convenient loading and mixing.
Besides , The conical bottom tanks can be used for a variety of purposes. Some examples would be
biodiesel processing, water treatment, oil settling and many other applications which require a chemical
resistant material and a cone shaped bottom for easy and full draining. Conical bottoms are ideal for even
draining. These tanks are essential when settling materials suspended in a fluid, as they will sink to the very
bottom and become fully drainable unlike in flat bottom tanks.
Please Notice , Poly roto tank are no Pressure tank , so if have any pressure into the tank , should be drill
air vent at the top
Suitable for growing fish, Chemical, Fertigation
UV stablized for Australian conditions
Food grade
Recyclable
Conical bottoms facilitate liquid drain out
Threaded in outlets for complete drainage
Tanks require stands to support conical bottoms
Tank walls are translucent for level viewing and equipped with gallon indicators
Sepcification
| Model | CMC500 |
| SIze | Diameter 800 *height 1380 |
| THickness | 6mm |
| Lid Size
| 133 mm inner diameter |
| Outlet | full drain outlet DN15 DN20 DN25 |
| Specific Gravity
| 1.0 - 1.5 |
| Level Markers
| no ,if you need , we can revised mold |
| UV Inhibitors | Yes |
| Colors
| Natural White For food grade , Black, Others By Request |
| Metal Stand
| Yes , but Stand Sold Separately |
| Uses:
| conical brewer beer/wine/tea, biodiesel tank, fermentation, chemical applications
|
| Additional Fittings:
| Available By Request ( Pipe , Threads |
Product Tags:
|
|
500L Plastic Rotomolded Products Conical Bottom Tanks Suitable For Biodiesel Processing Images
|
