Pallet discription
Vacuum-formed pallets have 1200*1000*150 mm weigh significantly less making them easier to lift and
handle safely. Because they’re reusable and recyclable, Thermoplastic Pallets are also more
environmentally friendly.
THe Thermoforming technique is a generic term for the progress of the producing plastic parts from a flat
sheet of plastic under temperature and pressure , in the highest expression of the technology.
thermoforming offers close tolerances , tight specifications.and sharp details , when combined with
advanced finishing techniques , high- technology thermoforming results in products comparable to those
formed by injection molding .
HDPE pallet made of 100% recycled high-density polyethylene, these rugged, lightweight plastic pallets are
easy to clean, won't splinter, rot or corrode and deliver years of unmatched performance. And when they do
reach the end of their usefulness, they can be recycled, helping to preserve the environment. These pallets
not only protect product, they protect employees because of their lightweight, user-friendly design. That
means reduced pallet-related injuries, increased employee productivity and a better bottom line. When
performance counts, count on the plastic pallets that save time, space and money year after year.
The advantage of the Plastic pallet are designed through Plastic Thermoforming for durability, making them
a much more cost effective choice than wood pallets which often fall apart in mere months. When you
consider the years of service your Thermoplastic Pallet will provide, the savings can really add up.
Made from 100% recycled material
Superior stiffness and impact resistance
Will not splinter, rot or corrode
Structurally molded of high-density polyethylene
Lightweight, user-friendly design reduces pallet-related injuries
Plastic Pallets and Top Caps nest for efficient storage
Top Caps design includes provision for strapping or seat belts
Top caps allow secure multi-level stacking of loads
Specifications
| Model | NL-BM-P1111 |

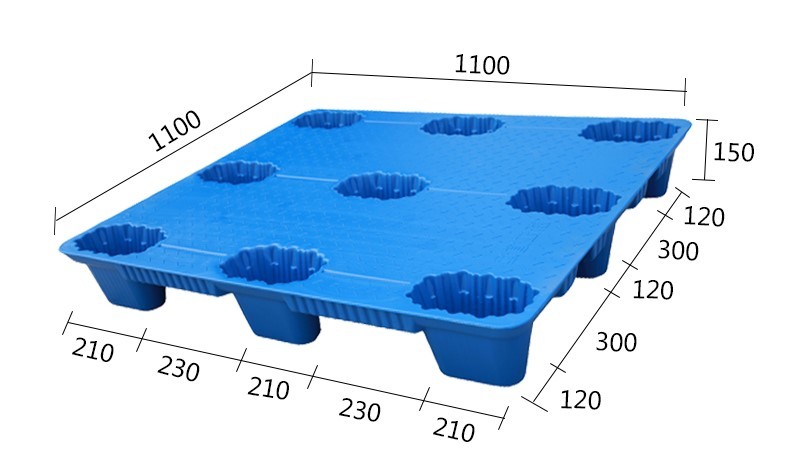

| Dimensions | 1100*1100*150 |
| Feature | Pallet with top caps |
| Forklift Entry | 4-way |
| Static Load Capacity | 2000 kg |
| Dynamic Load Capacity | 800 kg |
| Racking loading capacity | Not suitable for racking |
| Colour | Black color in stock , Customized any other Color |
| Minimum Order | 20 pcs |
| Industry Applications | Packing Clean Room Food and Beverage WIP load in manufacturing environments Medical and dental supplies Pharmaceuticals Storage and transportation of chemical waste Horticulture Store Display Pharmaceutical Warehousing, Distribution, Retail, Printing, Paper, Petrochemical and Mining industries |
Vacuum Formed Pallets full Size sheet for your Select
| Modle | Size(mm) |
| Single face pallet - nine foot ( blowing moulding technique ) |
| BM-N1111 | 1100*1100*150 |
| BM-N1210-C | 1200*1000*150 |
| BM-N210-B | 1200*1000*150 |
| BM-N1210-A | 1200*1000*150 |
| BM-N1212 | 1200*1000*150 |
| Duble face pallet ( blowing moulding technique ) |
| BM -P1111 | 1100*1100*170 |
| BM -P1210 | 1200*1000*170 |
| BM -P1311 | 1300*1100*170 |
| BM -P1212 | 1200*1200*170 |
| BM -P1412 | 1400*1200*170 |
| BM -P1512 | 1500*1200*150 |
| BM -P1513 | 1500*1300*150 |
| BM -P1614 | 1600*1400*150 |
